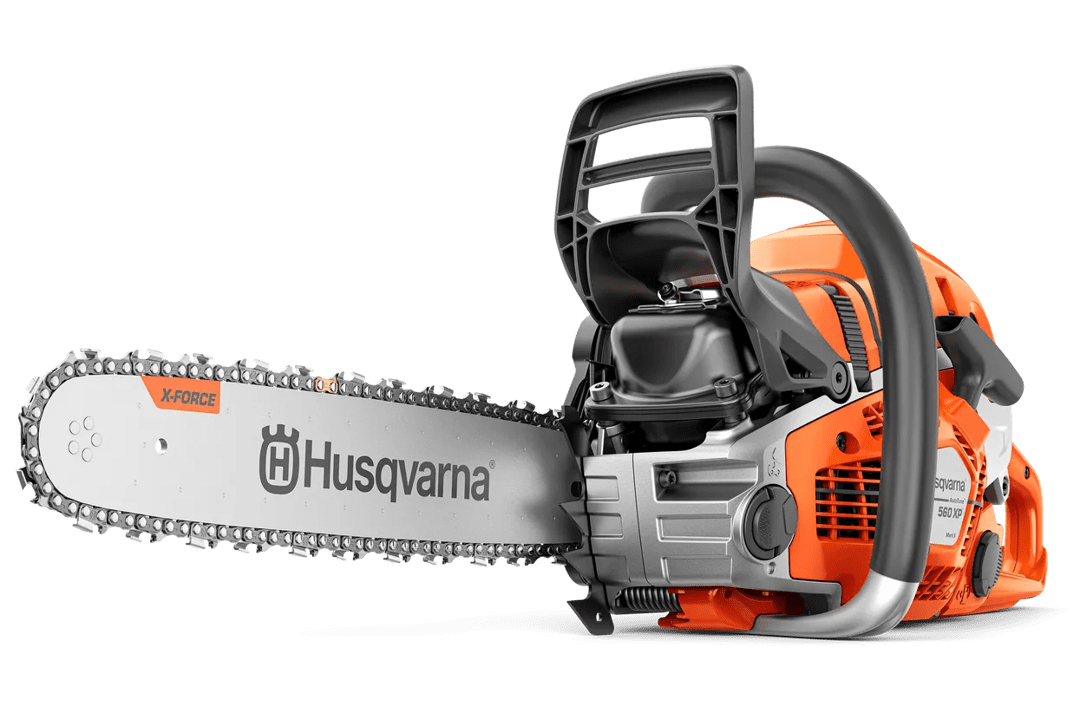

560XP 18″

The Husqvarna 560 XP® petrol chainsaw is developed for professional loggers and skilled land owners. This heavy duty chainsaw has a ground breaking design and is loaded with innovative solutions for efficient, convenient operation.

This easy start chainsaw helps increase productivity, while the Husqvarna X-Torq engine helps provide more power when you need it, using up to 20% less fuel while producing 75% less exhaust emissions versus other professional chainsaws. RevBoost™ provides an instant high chain speed for extra efficient de-limbing in the toughest conditions.

Specifications:

Capacity

• Chain speed at max power: 21.3 m/s
• Clutch engagement speed (±120): 4300 rpm
• Clutch engagement upper limit: 6000 rpm
• Idling speed: 2800 rpm
• Idling upper limit: 3500 rpm
• Ignition module air gap: 0.3 mm
• Maximum power speed: 9600 rpm
• Power output: 3.5 kW
• Torque, max.: 3.65 Nm

Dimensions

• Bar length (inch): 18 in
• Product Size, LxWxH; 46.3×22.5×28 cm
• Weight (excl. cutting equipment): 5.9 kg

Engine

• Cylinder bore: 46 mm
• Cylinder displacement: 59.8 cm³
• Cylinder stroke: 36 mm

Equipment

• Chain type: H25
• Gauge: 1.5 mm
• Pitch: .325″

Lubricant

• Fuel consumption: 494 g/kWh
• Fuel consumption: 1.74 kg/h
• Fuel tank volume: 0.65 l
• Lubricant type: Husqvarna 2 stroke or equiv. at 50:1
• Oil pump capacity Max: 15 ml/min
• Oil pump capacity Min: 6 ml/min
• Oil tank volume: 0.33 l
• Power/fuel type: Gasoline
