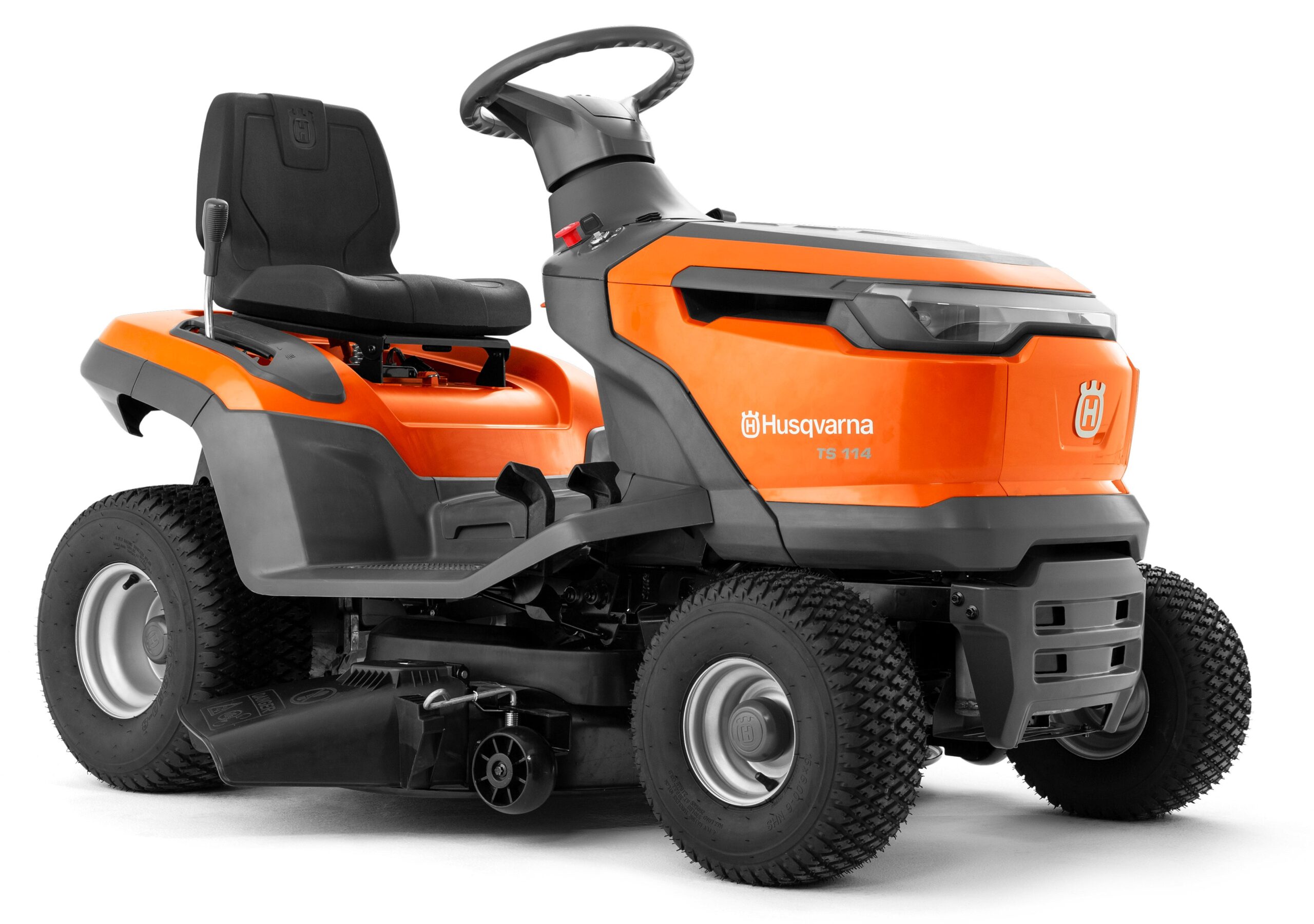

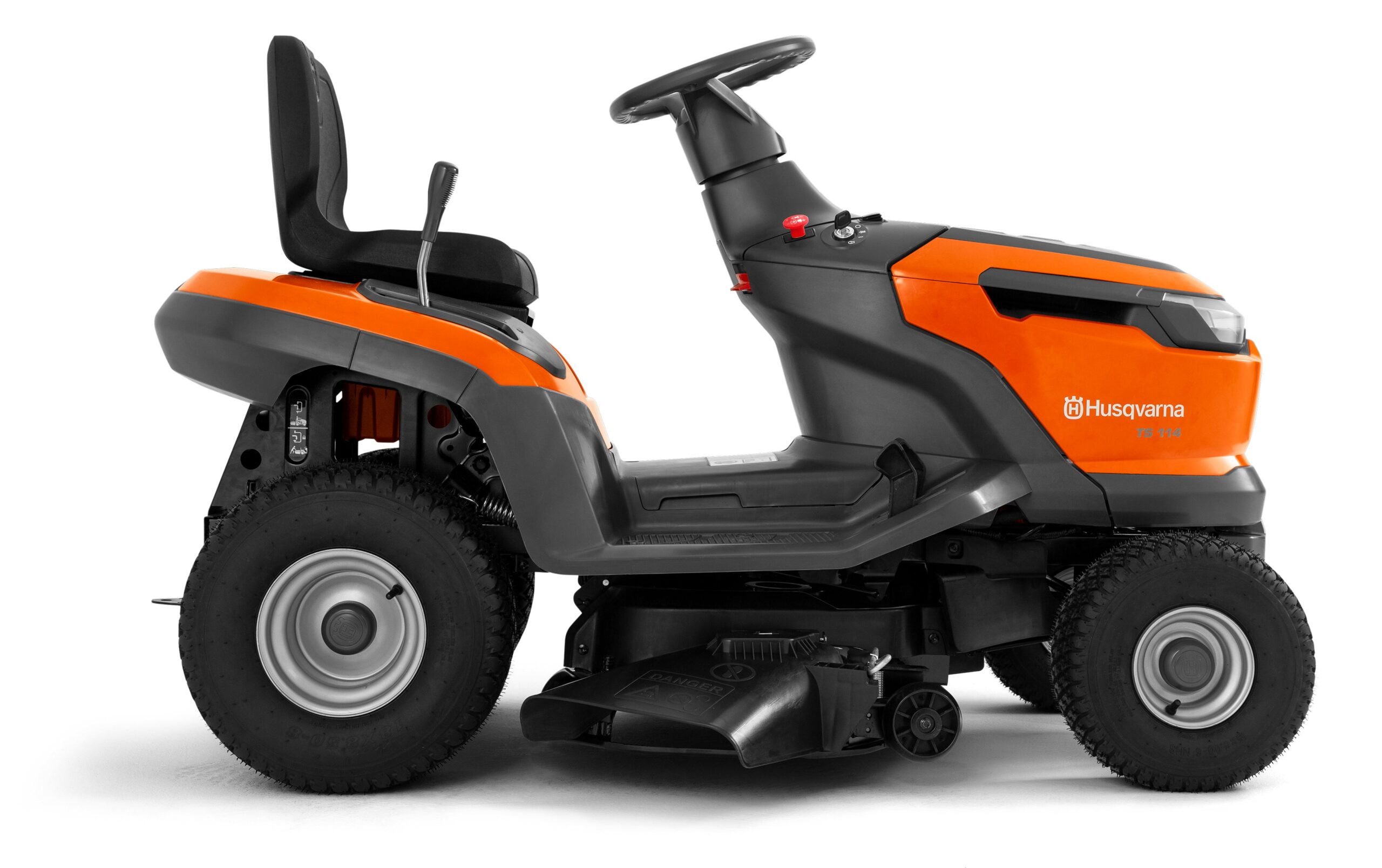

HUSQVARNA TS114
The Husqvarna TS 114 is an easy-to-use garden tractor ideal for large lawns.
Even in narrow passages, the Husqvarna TS 114 delivers an exceptional mowing experience and excellent results.
With ergonomically placed levers, side -by-side pedals and a spring-assisted cutting deck, you can achieve an excellent cut without straining your body.
This machine is conveniently compact for optimised storage, maintenance and operation.
Equipped with a 95 cm side discharge cutting deck
Features
Easy speed and direction control with pedal-operated hydrostatic transmission.
Easy control of operating time, service and maintenance intervals.
comfortable driving position and operation with adjustable seat and easy-access controls.
for better control and easy, intuitive operation.
Simply pull the switch on the control panel to engage the cutting blades.
Technical details
| Cutting width | 95 cm |
| Cutting height max | 100 mm |
| Cutting height min | 25 mm |
| Nose roller | No |
| Anti-scalp wheels | 2 |
| Drive method | Dual pedal-operation |
| Speed forward max | 9 km/h |
| Speed reverse max | 5 km/h |
| Cylinder displacement | 452 cm³ |
| Engine brand | Husqvarna |
| Motor/engine manufacturer | Husqvarna |
| Engine name | HS 452AE |
| Net power at preset rpm Energy (Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer) | 9 kW |
| Net power at preset rpm | 2,800 rpm |
| Cylinders | 1 |
| Generator | 12 |
| Power/fuel type | Petrol |
| Oil filter | Yes |
| Seat material | PU |
| Seat type | Standard |
| Front-End Protection | Available as accessory |
| Hour meter type | Digital |
| Seat back height | Medium |
| Steering wheel type | Ergonomic |
| Collector | Available as accessory |
| Transmission type | Hydrostatic |
| Transmission Brand | Hydro-Gear |
| Sound power level, guaranteed (LWA) | 97.6 dB(A) |
| Sound pressure level at operators ear (LpA) | 83.4 dB(A) |
| Exhaust emissions (CO₂ EU V) (Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.) | 754 g/kWh |
