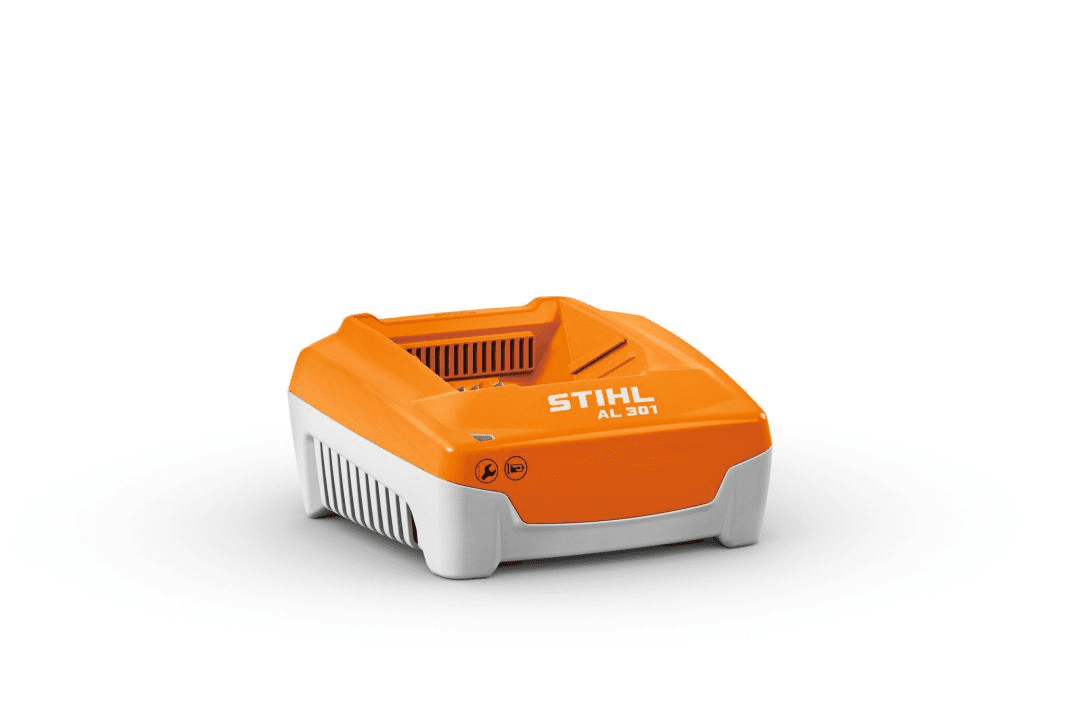

STIHL AL301

The Stihl AlL301 230 V quick charger is for the AK system and AP system batteries.

With a 6.5 A charging current for fast recharge times and a built-in fan for active cooling.

To prevent overcharging the AL 301 automatically switches off when the battery is fully charged. This charger is able to be wall-mounted to save space.

AK system charging times:

• AK 10 Battery: 45 Min.
• AK 20 Battery: 55 Min.
• AK 30 battery: 60 Min.

AP System charging times:

• AP 100 battery: 45 Min.
• AP200 Battery: 55 Min.
• AP 300 battery: 60 Min.
• AP 300s Battery: 70 Min.
• AP 500 S battery: 90 Min
• AR 2000 L backpack battery: 150 Min
• AR3000 L backpack battery: 220 Min.

Specifications:

• Rated voltage: 220 -240 V
• charging current: 6.5 A
• Weight: 1.62 KG
• rated current: 2.3 A
• weight: 1.2 KG
• power output: 0.3 kW
• Protection class: II
